Rotary Brooms For Skid Steers & 3-Pt. Tractor Mount

Features

  • Performance driven rotary brooms for use by contractors, municipalities, institutions, and farmers .
  • Remove dirt, sand, gravel and trash from construction entrances, parking lots, bridges, driveways and sidewalks.
  • Remove thatch and prepare turf for the growing season.
  • Clean snow or leaves from streets, driveways, and building entrances.
  • Excellent for general clean up before sealing or repairing pavement.
  • Literature

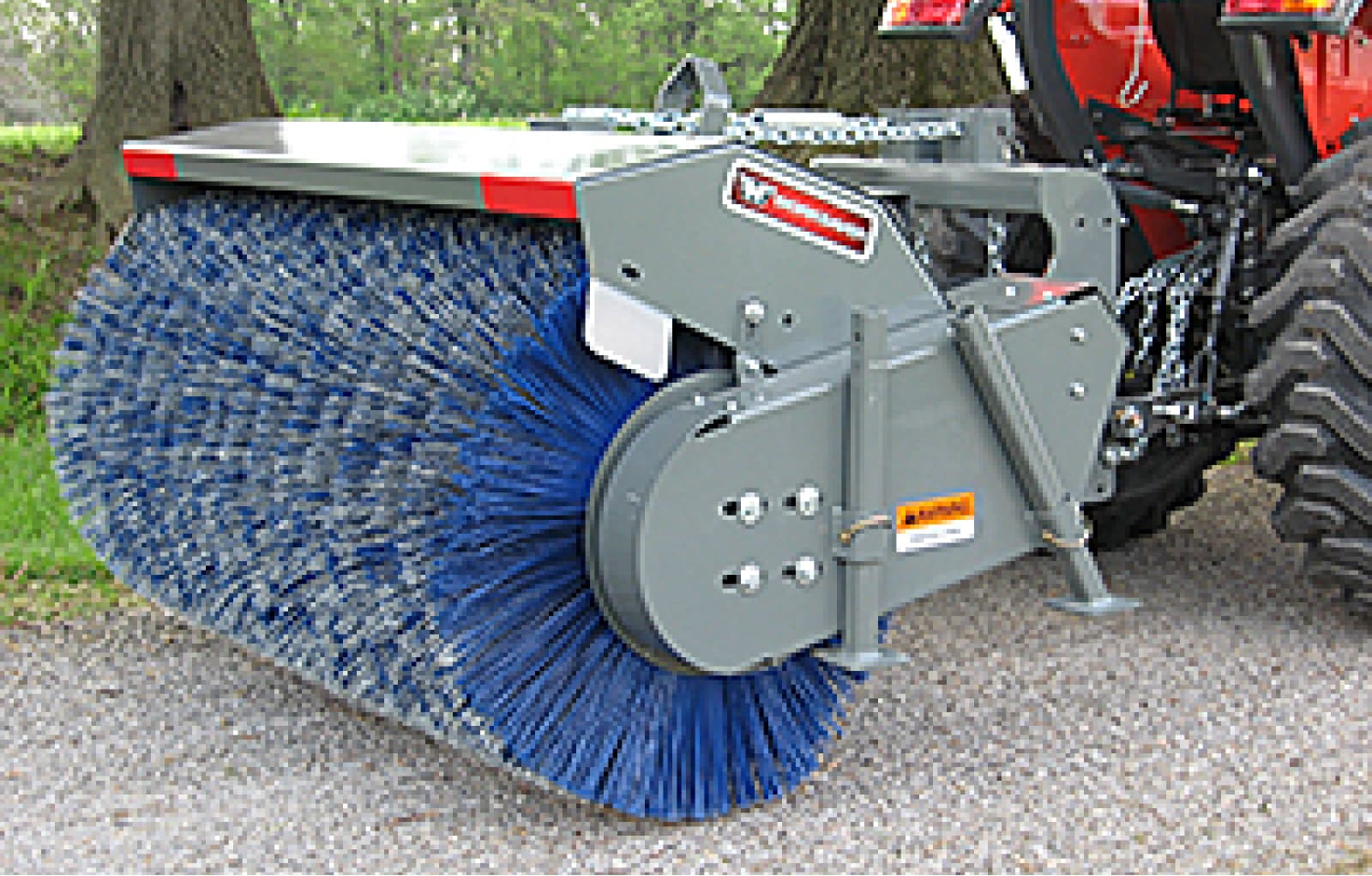

PTO rotary brooms from Worksaver.
  • PTO driven 3-pt. tractor mount in 5-ft., 6-ft., & 7-ft. widths with 32" diameter brushes.
  • Designed for Category I tractors with 1,000 lbs. or greater 3-pt. lift capacity. With bushings these models can be used on most Cat. II tractors.
  • Double gearbox drive (Patented No. 8,117,705) for smooth power tranmission and easy reversal of brush rotation.
  • Broom angles 30° right and left.
  • Parking stands standard.
watch video button

  • Hydraulically driven skid steer models in 5-ft., 6-ft., & 7-ft. widths with 32" diameter brushes.
  • Variable flow control valve for optimum broom speed.
  • Step-through mount design for easy in/out of skid steer cab.
  • Broom angles 30° right or left.
  • Parking stands standard.
  • 32" Diameter convoluted brushes available in Poly (P) or both Poly and Wire (PW).
  • Height adjustment chains maintain even operating position.
  • Parking stand included as standard equipment.
  • Manual or Hydraulic Angle Kits available.
Skid steer rotary brooms.
Skid Steer Rotary Broom Specifications
  SSMB-325P SSMB-325PW SSMB-326P SSMB-326PW SSMB-327P SSMB-327PW
Overall Width (in/cm) 69 / 175 69 / 175 81 / 206 81 / 206 93 / 236 93 / 236
Brush Diameter (in/cm) 32 / 81 32 / 81 32 / 81 32 / 81 32 / 81 32 / 81
Sweeping Width (in/cm) 60 / 152 60 / 152 72 / 183 72 / 183 84 / 213 84 / 213
Width @ 30° Angle (in/cm) 53 / 135 53 / 135 64 / 163 64 / 163 76 / 193 76 / 193
Mounting System Skid Steer Skid Steer Skid Steer Skid Steer Skid Steer Skid Steer
Brush Material Poly Poly / Wire Poly Poly / Wire Poly Poly / Wire
Hydraulic Motor Rating 16 GPM 16 GPM 16 GPM 16 GPM 16 GPM 16 GPM
Oil Flow Requirement (gpm/lpm) 12-30 / 45-114 12-30 / 45-114 12-30 / 45-114 12-30 / 45-114 12-30 / 45-114 12-30 / 45-114
Dirt Deflector Optional Optional Optional Optional Optional Optional
Weight (lbs/kg) 640 / 290 637 / 289 740 / 336 736 / 334 840 / 381 833 / 378
Product No. 610961 610960 610966 610965 610971 610970
  Skid Steer Rotary Broom Parts List Skid Steer Rotary Broom Manual

3-Pt. Rotary Broom Specifications
  RMB-325P RMB-325PW RMB-326P RMB-326PW RMB-327P RMB-327PW
Overall Width (in/cm) 69 / 175 69 / 175 81 / 206 81 / 206 93 / 236 93 / 236
Brush Diameter (in/cm) 32 / 81 32 / 81 32 / 81 32 / 81 32 / 81 32 / 81
Sweeping Width (in/cm) 60 / 152 60 / 152 72 / 183 72 / 183 84 / 213 84 / 213
Width @ 30° Angle (in/cm) 53 / 135 53 / 135 64 / 163 64 / 163 76 / 193 76 / 193
Mounting System 3-pt. (Cat. I) 3-pt. (Cat. I) 3-pt. (Cat. I) 3-pt. (Cat. I) 3-pt. (Cat. I) 3-pt. (Cat. I)
Brush Material Poly Poly / Wire Poly Poly / Wire Poly Poly / Wire
PTO RPM Range 540 540 540 540 540 540
Dirt Deflector Optional Optional Optional Optional Optional Optional
Weight (lbs/kg) 720 / 326 714 / 324 780 / 354 774 / 351 840 / 381 833 / 378
Product No. 610705 610700 610755 610750 610805 610800
  3-Pt. Rotary Broom Parts List 3-Pt. Rotary Broom Manual

Angle Adjustment Kits
Item #610702 Manual Angle Adjustment Kit for either skid steers or tractor 3-pt. Parts List
Item #610703 3-pt. Hydraulic Angle Adjustment Kit - includes cylinder & hoses less tips. Parts List
Item #610940 Skid Steer Hydraulic Angle Adjustment Kit - includes elec. hydraulic solenoid control valve. For skid steer brooms used on units with only one set of remotes. Includes cylinder, hoses, valve, & flat-faced couplers. Factory installed.. Parts List
Electric Solenoid Kit(Optional)
Item #610950 Field installed electric hydraulic solenoid valve kit - fits #610703 hydraulic angle kit above. Parts List

Optional Electrical Wiring Kits for Skid Steers

To connect our electric/hydraulic solenoid control when installed on our Rotary Brooms (or Power Landscape Rakes) into OEM Skid Steer auxiliary electric controls, allows operating the electric/hydraulic solenoid valve from the operator seat with the buttons on the hand control.

Item #2507024 ASV Skid Steer 8 Pin Wiring Kit
Item #2507026 Bobcat Skid Steer 14 Pin Wiring Kit
Item #2507027 Case Skid Steer 14 Pin Wiring Kit
Item #2507024 Caterpillar Skid Steer 8 Pin Wiring Kit
Item #2507028 Caterpillar Skid Steer 14 Pin Wiring Kit
TBA Gehl Skid Steer 14 Pin Wiring Kit
Item #2507029 JCB Skid Steer 14 Pin Wiring Kit
Item #2507030 John Deere Skid Steer 14 Pin Wiring Kit
Item #2507031 Kubota Skid Steer 14 Pin Wiring Kit
Item #2507027 New Holland Skid Steer 14 Pin Wiring Kit
TBA Mustang Skid Steer 14 Pin Wiring Kit
Item #2507029 Volo Skid Steer 14 Pin Wiring Kit
Item #2507031 Wacker Neuson Skid Steer 14 Pin Wiring Kit
