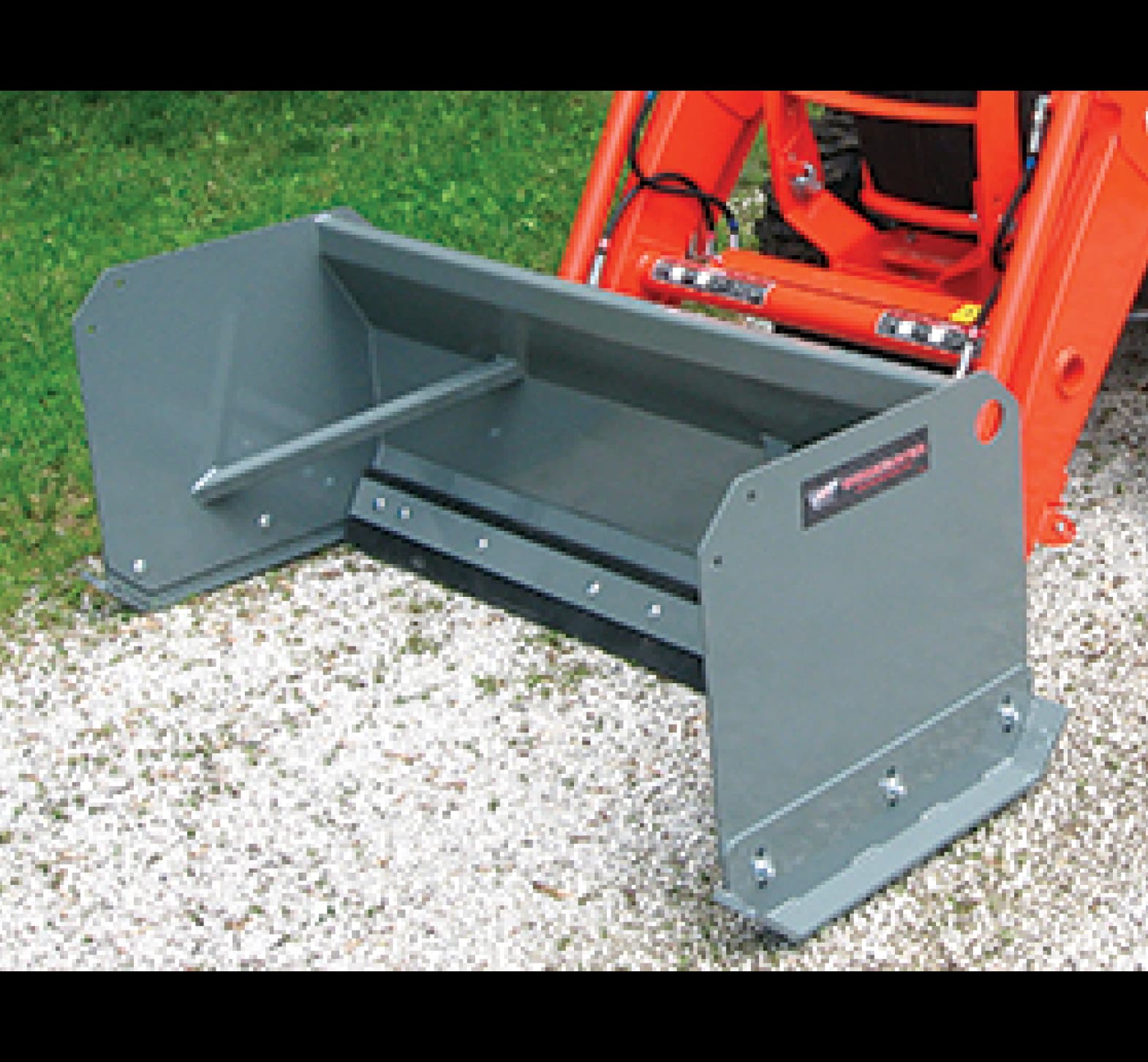

24-Series Snow Pusher

24-Series Snow Pusher

  • Engineered to fit compact tractors equipped with a front loader.
  • Replaceable 1” x 6” reversible ultra rubber cutting edge is standard on “R” models.
  • Replaceable 3/8” x 6” reversible steel cutting edge is standard on “M” models.
  • Models to fit loaders with “Universal” skid steer attaching system.
  • Models to fit John Deere 200/300/400 series loaders with hook & pin quick attach system.
  • All models feature adjustable & reversible skid shoes of high abrasive resistance steel.
  • Optional Pull-Back kit available for all models features 1' x 6" ultra rubber cutting edge.

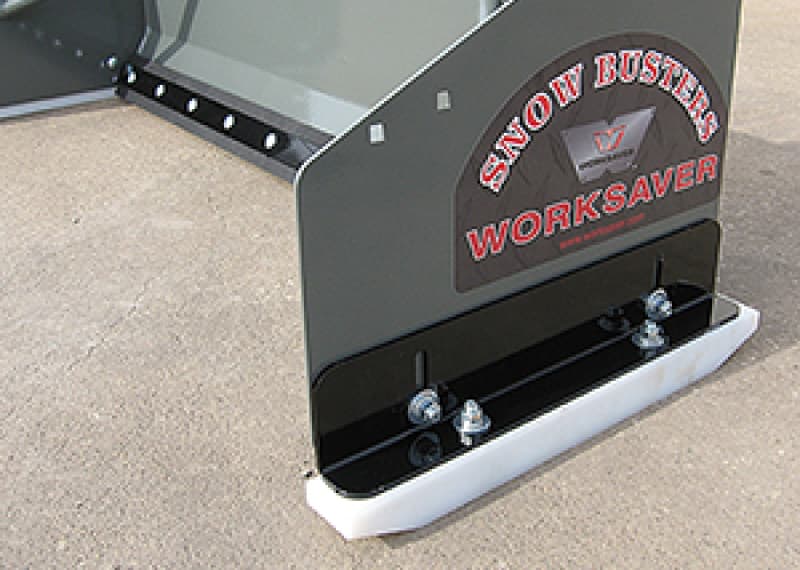

Optional Poly Skid Shoes

Fits both 20-series & 24-series snow pushers


24-Series "Universal" Snow Pusher Specifications

For Tractors up to 50 HP, Max. “Universal” Skid Steer Attach

Description

SPS-2460R

SPS-2460M

SPS-2472R

SPS-2472M

SPS-2484R

SPS-2484M

Overall Width (in/cm)

66.5 / 169

66.5 / 169

78.5 / 199.4

78.5 / 199.4

90.5 / 230

90.5 / 230

Overall Height (in/cm)

25.6 / 65

25.6 / 65

25.6 / 65

25.6 / 65

25.6 / 65

25.6 / 65

Overall Depth (in/cm)

26 / 66

26 / 66

26 / 66

26 / 66

26 / 66

26 / 66

Moldboard Thickness

10-gauge

10-gauge

10-gauge

10-gauge

10-gauge

10-gauge

End Plate Thickness (in/cm)

¼ / 0.635

¼ / 0.635

¼ / 0.635

¼ / 0.635

¼ / 0.635

¼ / 0.635

Reinforced Endplates

Yes

Yes

Yes

Yes

Yes

Yes

Rubber Cutting Edge

Yes

No

Yes

No

Yes

No

Steel Cutting Edge

No

Yes

No

Yes

No

Yes

Adjustable/Reversible Skid Shoes

Standard

Standard

Standard

Standard

Standard

Standard

Horsepower Rating

20-30 HP

20-30 HP

25-40 HP

25-40 HP

30-50 HP

30-50 HP

Operating Weight of Power Unit

3,500 lbs. Max.

3,500 lbs. Max.

3,500 lbs. Max.

3,500 lbs. Max.

3,500 lbs. Max.

3,500 lbs. Max.

Weight (lbs/kg)

390 / 177

410 / 186

430 / 195

450 / 204

465 / 211

485 / 220

Product No.

358000

358005

358010

358015

358020

358025

Optional Pull-Back Kit

358095

358095

358105

358105

358115

358115

Optional Poly Skid Shoes

358245

358245

358245

358245

358245

358245


24-Series John Deere Snow Pusher Specifications

For John Deere Tractors up to 50 HP, Max. John Deere Hook & Pin Quick Attach for 200/300/400, D120, D160, D170, H120, H130, H160, H165, H180

Description

SPJD-2460R

SPJD-2460M

SPJD-2472R

SPJD-2472M

SPJD-2484R

SPJD-2484M

Overall Width (in/cm)

66.5 / 169

66.5 / 169

78.5 / 199.4

78.5 / 199.4

90.5 / 230

90.5 / 230

Overall Height (in/cm)

25.6 / 65

25.6 / 65

25.6 / 65

25.6 / 65

25.6 / 65

25.6 / 65

Overall Depth (in/cm)

26 / 66

26 / 66

26 / 66

26 / 66

26 / 66

26 / 66

Moldboard Thickness

10-gauge

10-gauge

10-gauge

10-gauge

10-gauge

10-gauge

End Plate Thickness (in/cm)

¼ / 0.635

¼ / 0.635

¼ / 0.635

¼ / 0.635

¼ / 0.635

¼ / 0.635

Reinforced Endplates

Yes

Yes

Yes

Yes

Yes

Yes

Rubber Cutting Edge

Yes

No

Yes

No

Yes

No

Steel Cutting Edge

No

Yes

No

Yes

No

Yes

Adjustable/Reversible Skid Shoes

Standard

Standard

Standard

Standard

Standard

Standard

Horsepower Rating

20-30 HP

20-30 HP

25-40 HP

25-40 HP

30-50 HP

30-50 HP

Operating Weight of Power Unit

3,500 lbs. Max.

3,500 lbs. Max.

3,500 lbs. Max.

3,500 lbs. Max.

3,500 lbs. Max.

3,500 lbs. Max.

Weight (lbs/kg)

379 / 172

399 / 181

415 / 188

435 / 197

450 / 204

470 / 213

Product No.

358030

358035

358040

358045

358050

358055

Optional Pull-Back Kit

358095

358095

358105

358105

358115

358115

Optional Poly Skid Shoes

358245

358245

358245

358245

358245

358245


NOTICE: Worksaver Inc. has a corporate policy of continuous product improvement and development: Therefore, specifications are subject to change without any advance notice. Worksaver Inc. is not responsible for differences between specifications or illustrations contained in this site and the actual equipment.
