Grader Blade
Grader Blade

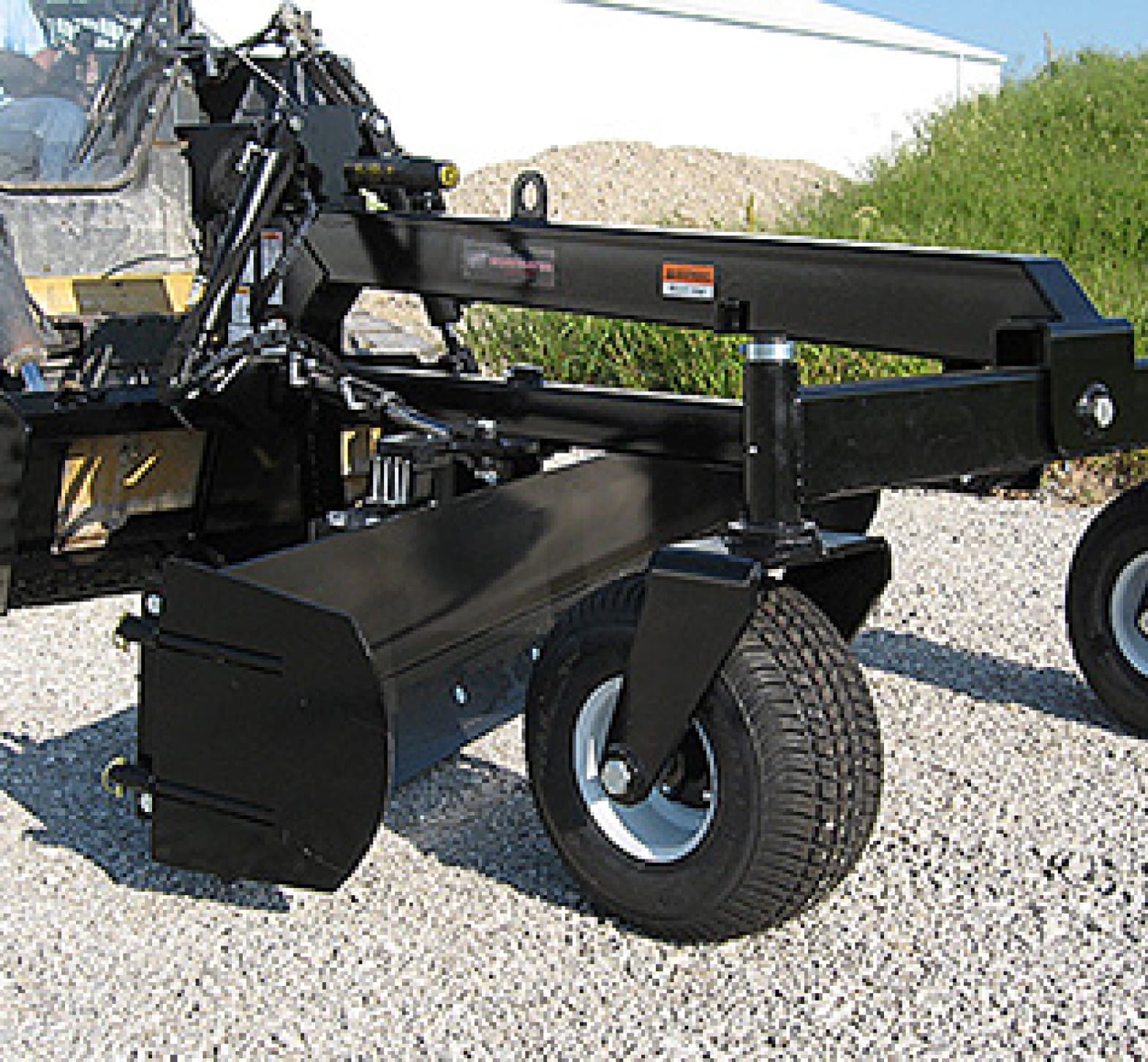

Our patented SSGB-8C skid steer grader blade is designed to be used by asphalt, landscaping, and concrete flatwork contractors. The unit has an 8-foot, six-way hydraulically controlled moldboard operated by an in-cab remote. Optional 14-pin cable connectors are available for most skid steers to allow the use of the skid steer’s joystick controls.

Product Features
- To help prevent damage, the moldboard is shear pin protected.
- Unit comes complete with 1/2” “connect under pressure” flat-faced hydraulic couplers and a reversible beveled cutting edge for long life.
- Standard proportional valve.
- Optional laser interface junction box allows use of a Leica laser system to maintain tight grade tolerances.
- Optional End Plate Kit (Pair, #811980) and Laser Pole Kit (Pair, #812110) are also available.
See the Skid Steer Grader Blade in Action

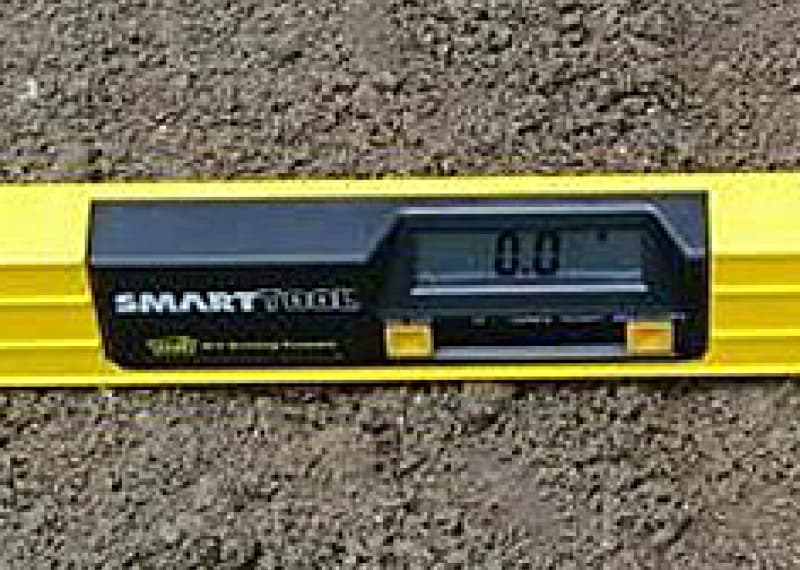

Helps manage the grade

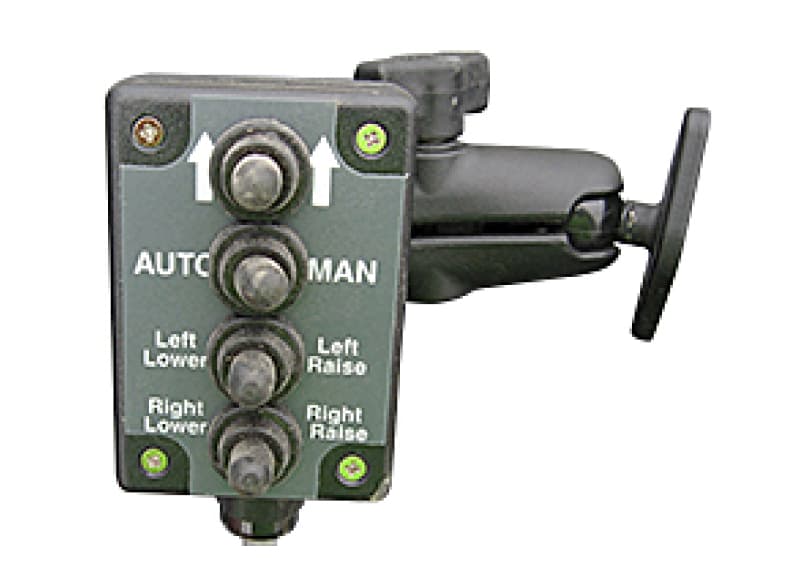

In-cab control box.

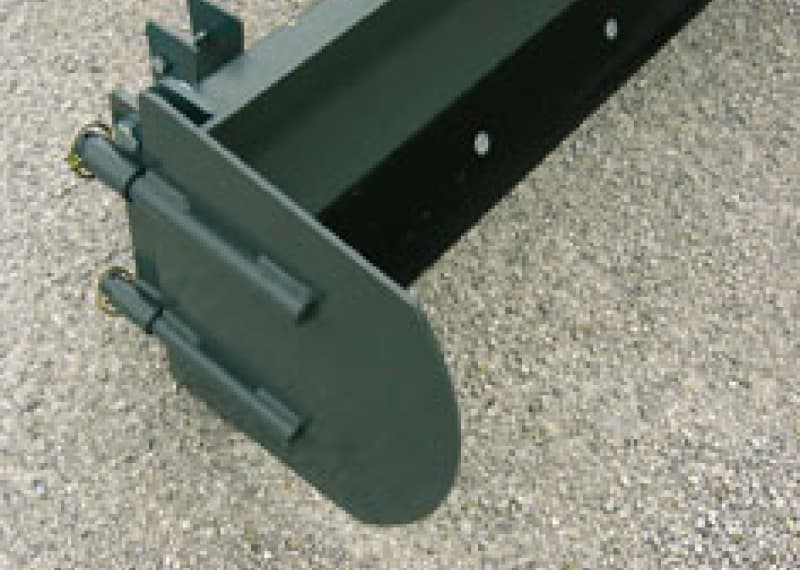

Optional end plate
End plates sold in pairs only.

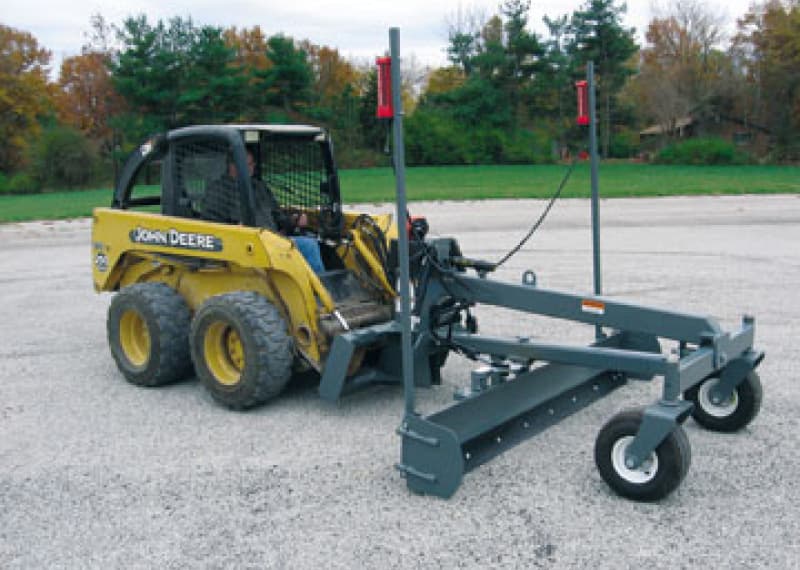

Optional laser pole kit
Laser Pole Kits sold in pairs only.

Grader Blades Specifications
Description
SSGB-8C
Overall Height (in/cm)
46-1/2 / 118.1
Overall Length (in/cm)
98 / 248.9
Overall Width (in/cm)
95-1/2 / 242.6
Weight (lbs/kg)
1195 / 542
Mount Type
Universal Skid Steer
Hydraulic Blade Adjustments
Tilt / Angle / Height
Moldboard Width (in/cm)
95-1/2 / 242.6
Moldboard Height (in/cm)
15 / 381 w/Cutting Edge
Moldboard Width, Fully Angled (in/cm)
85 / 215.9
Moldboard Rotation Left & Right
25 Degrees
Moldboard Tilt Up or Down
25 Degrees
Reversible Moldboard Cutting Edge (in/cm)
1/2 x 6 / 33 x 386 Double Bevel
Moldboard Shear Pin Protection (in/cm)
5/16 / .8166 Diameter Shear Pin (Soft)
3 -Hydraulic Cylinders (in/cm) PSI/bar
2 / 5 Bore x 12 / 30 Stroke 3500 / 241
Flat-Faced Couplers Included (in/cm)
1/2 / 13 Body - Connect Under Pressure
Grader Control Valve
Electric Solenoid Operated
In-Cab Remote Control
Standard
14-Pin Cable Control
Optional
Recommended Min. Skid Steer HP
45 HP (34 kw)
Wheel Bearings
Greaseable Tapered Roller
Tire Size (in/cm)
18-1/2 x 8-1/2 x 8 / 47 x 21.6 x 20.3
Product No.
811890
NOTICE: Worksaver Inc. has a corporate policy of continuous product improvement and development: Therefore, specifications are subject to change without any advance notice. Worksaver Inc. is not responsible for differences between specifications or illustrations contained in this site and the actual equipment.
