ETG-5 and ETG-6 Tine Grapple Parts List

ETG-5 and ETG-6 Tine Grapple Parts List
ETG-5 and ETG-6 Tine Grapple parts list from Worksaver.

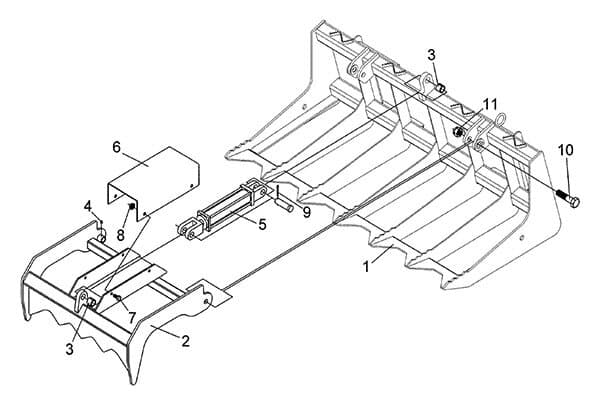

Ref. No Part No. Description No. Req'd
1 811023 Main Frame Weldment (ETG-5) 1
  811024 Main Frame Weldment (ETG-6) 1
2 811030 Clamp Weldment w/Bushing and Zerks 1
3 2505035 Spring Bushing (1-1/4" x 1" x 1") 2
4 2504049 Drive Zerk 5/16" 2
5 2504230 Hydraulic Cylinder 2 x 8 1
6 811788 Cylinder Guard 1
7 2503062 Bolt 1/2"-13NC x 1" Hex Head Gr. 2 4
8 2500040 Nut 1/2"-13NC Whiz Flange Hex 4
9 2504121 Cotter Pin 3/16" x 1-1/2" 2
10 2503309 Bolt 1"-8NC x 4" Hex Head Gr. 5 2
11 2500085 Nut 1"-8NC Hex Jam Nylock 2
N/S 101122 Safety Sign - Warning (Hi-Pressure) 1
N/S 101288 Safety Sign - Warning (Crush/Pinch) 1
N/S 101289 Safety Sign - Warning (Injury) 1
N/S 101295 Safety Sign - Warning (Crushing Hazard) 1
