ETG Series Tine Grapple

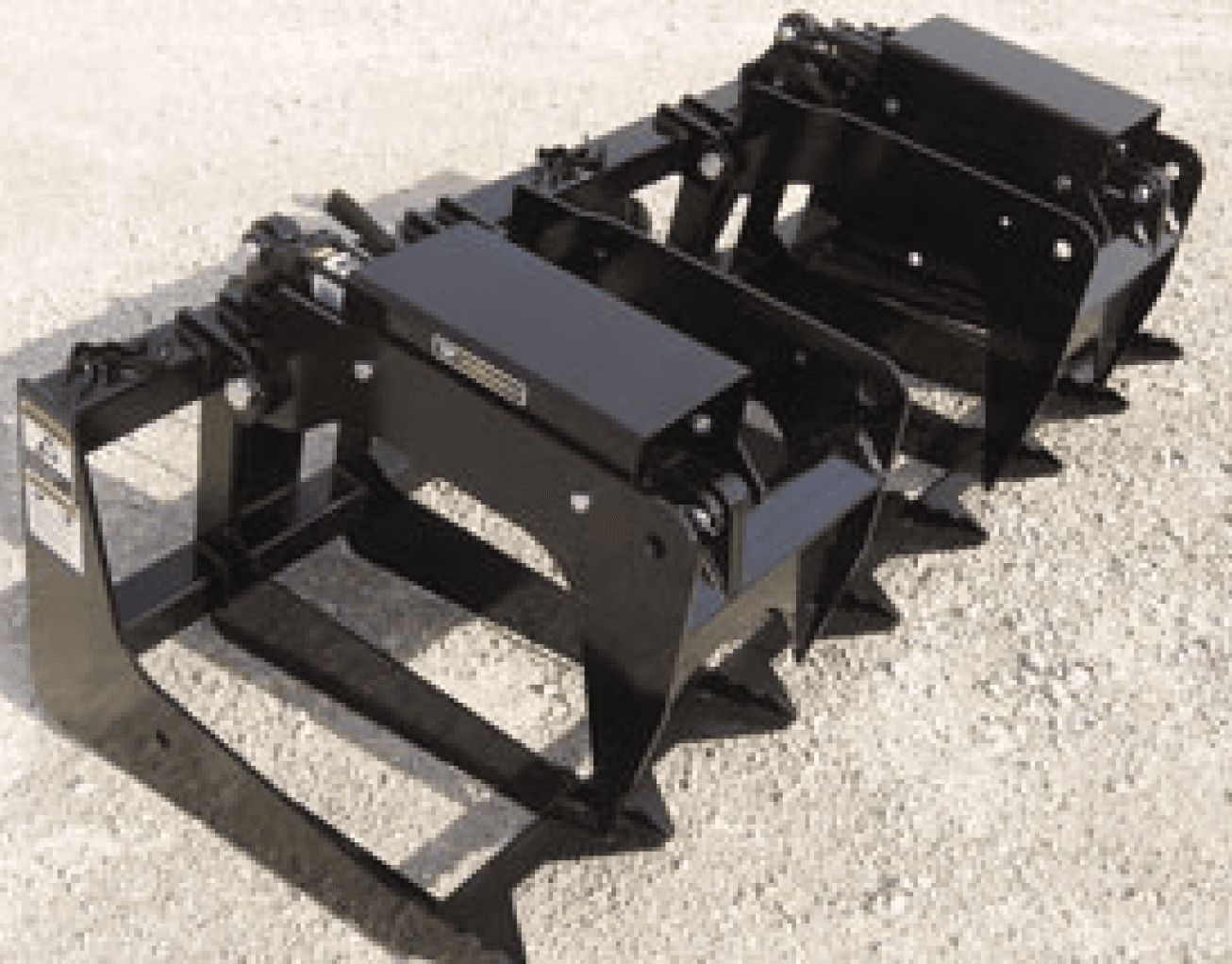

ETG-26

ETG-26JD

ETG-6

These tough, reliable and economical grapples offer models with skid steer style hook-up, John Deere 400/500 hook-up as well as a model for Euro/Global hook-up. Select models offer dual upper clamps for additional clamping. These grapples are ideal for raking, piling, and loading brush and other hard to handle materials while leaving the dirt behind.



• Unique upper grapple design on single clamp units provides clamping force to hold material securely.
• Recommended power unit size 30-55 hp.
• Greaseable pivot points on upper grapple(s) for long service life.
• Low profile design offers great forward visibility.
• Shield plate on upper grapple provides protection for hydraulic cylinder(s).
• Hoses are routed through the tube to provide hose protection on the ETG-26 models.
• ETG-26 with dual upper grapples for additional clamping is offered with Skid Steer mount, Euro/Global mount and John Deere 400/500 mount.
• Download the literature



ETG Series Tine Grapple Specifications
	ETG-5	ETG-6	ETG-5-JD	ETG-6-JD	ETG-26	ETG-26-JD	ETG-26-G
Overall Width (in/mm)	61.5 / 1562	71.75 / 1822	61.5 / 1562	71.75 / 1822	71.75 / 1822	71.75 / 1822	71.75 / 1822
Overall Depth (in/mm)	35.5 / 901	35.5 / 901	35.5 / 901	35.5 / 901	35.5 / 901	35.5 / 901	35.5 / 901
Inside Depth (in/mm)	28.5 / 724	28.5 / 724	28.5 / 724	28.5 / 724	28.5 / 724	28.5 / 724	28.5 / 724
Overall Height (in/mm)	25.5 / 648	25.5 / 648	25.5 / 648	25.5 / 648	25.5 / 648	25.5 / 648	25.5 / 648
Grapple Opening (in/mm)	34 / 864	34 / 864	34 / 864	34 / 864	34 / 864	34 / 864	34 / 864
Upper Grapple Width (in/mm)	34 / 864	34 / 864	34 / 864	34 / 864	20 / 508	20 / 508	20 / 508
Number of Upper Grapples	1	1	1	1	2	2	2
Number of Tines	7	8	7	8	8	8	8
Tine Spacing (in/mm)	10 / 254	10 / 254	10 / 254	10 / 254	10 / 254	10 / 254	10 / 254
Cylinder Pressure Rating (psi/bar)	3000 / 207	3000 / 207	3000 / 207	3000 / 207	3000 / 207	3000 / 207	3000 / 207
Mounting Type	“Universal” Skid Steer		300/400/500 Series JD		“Universal” Skid Steer	JD 400 / 500	Euro / Global
Weight (lbs/kg)	415 / 188	445 / 202	420 / 190	450 / 204	525 / 238	530 / 240	540 / 245
Horsepower Range	30 – 55 HP	30 – 55 HP	30 – 55 HP	30 – 55 HP	30 – 55 HP	30 – 55 HP	30 – 55 HP
Product Item No.	811020	811025	811080	811085	811090	811075	811095
Download Manual Here	Parts List Click Here		Parts List Click Here		Parts List Click Here
	Hydraulic Diagram and Parts List Click Here		Hydraulic Diagram and Parts List Click Here		Hydraulic Diagram and Parts List Click Here
