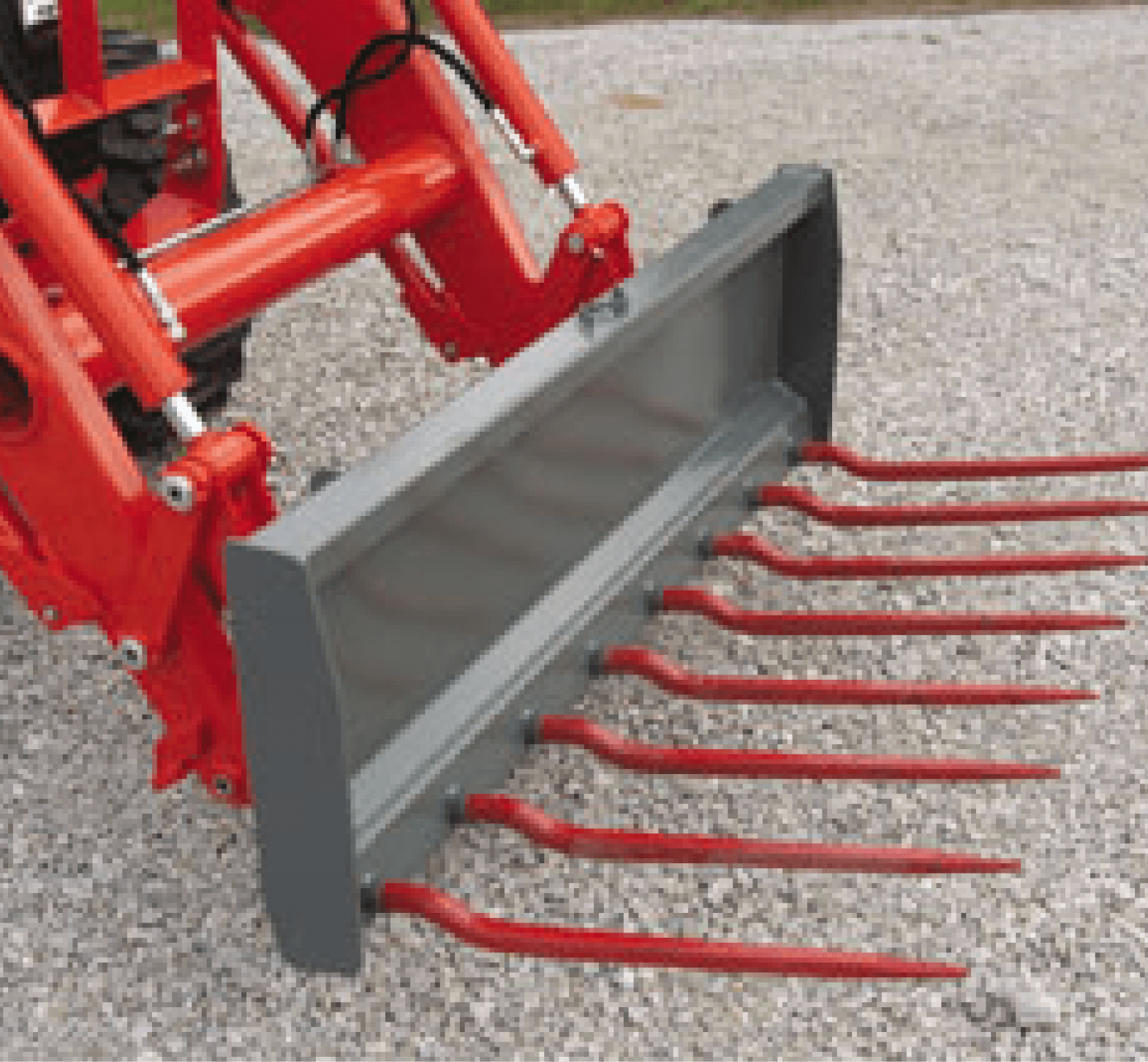

- Designed for picking up manure, matted straw or other loose materials.
- Produces cleaner stalls with less physical effort.
- 66" & 72" models feature forged cranked tines.
- 50" & 60" models use straight tines of 1-1/8" alloy steel.
- Mount types: “universal” skid steer and John Deere hook & pin.
- Download the literature
| Manure / Silage / Debris Forks Designed for use on Skid Steers and Tractor Front Loaders | ||||
| Models interface with loaders that use the “universal” skid steer mount system | ||||
| Model | MF/S-50S | MF/S-60S | M/S-66S | M/S-72S |
| Overall Width (in/mm) | 50 / 1270 | 60 / 1524 | 66 / 1676 | 72 / 1829 |
| Overall Depth (in/mm) | 23.75 / 603 | 31 / 787 | 31 / 787 | 31 / 787 |
| Overall Height (in/mm) | 21.5 / 546 | 21.5 / 546 | 21.5 / 546 | 21.5 / 546 |
| Upper Grapple | No | No | No | No |
| Upper Grapple Width (in/mm) | N/A | N/A | N/A | N/A |
| Useable Tine Length (in/mm) | 20.8 / 528.3 | 20.8 / 528.3 | 27 / 686 | 27 / 686 |
| Number of Tines | 7 | 8 | 9 | 10 |
| Tine Type | 1-1/8" Alloy Steel | 1-1/8" Alloy Steel | Forged Cranked Tines | Forged Cranked Tines |
| Tine Spacing (in/mm) | 7.75 / 196.85 | 7.75 / 196.85 | 7.5 / 190 | 7.5 / 190 |
| Mounting Type | Skid Steer | Skid Steer | Skid Steer | Skid Steer |
| Weight (lbs/kg) | 146 / 66 | 172 / 78 | 240 / 109 | 270 / 122 |
| Product No. | 812620 | 812625 | 812400 | 812315 |
| Download Manual Here | ||||
| Manure / Silage / Debris Forks Designed for use on John Deere Tractor Front Loaders | ||||
|
Models interface with John Deere 300/400/500 Series loaders with hook & pin quick attach |
||||
| Model | MF/S-50JD | MF/S-60JD | M/S-66JD | M/S-72JD |
| Overall Width (in/mm) | 50 / 1270 | 60 / 1524 | 66 / 1676 | 72 / 1829 |
| Overall Depth (in/mm) | 23.75 / 603 | 23.75 / 603 | 31 / 787 | 31 / 787 |
| Overall Height (in/mm) | 21.5 / 546 | 21.5 / 546 | 21.5 / 546 | 21.5 / 546 |
| Upper Grapple | No | No | No | No |
| Upper Grapple Width (in/mm) | N/A | N/A | N/A | N/A |
| Useable Tine Length (in/mm) | 20.8 / 528.3 | 20.8 / 528.3 | 27 / 686 | 27 / 686 |
| Number of Tines | 7 | 8 | 9 | 10 |
| Tine Type | 1-1/8" Alloy Steel | 1-1/8" Alloy Steel | Forged Cranked Tines | Forged Cranked Tines |
| Tine Spacing (in/mm) | 7.75 / 196.85 | 7.75 / 196.85 | 7.5 / 190 | 7.5 / 190 |
| Mounting Type | JD 200 / 300 | JD 200 / 300 | JD 400 / 500 | JD 400 / 500 |
| Weight (lbs/kg) | 141 / 64 | 167 / 76 | 245 / 111 | 268 / 122 |
| Product No. | 812630 | 812635 | 812410 | 812345 |
| Download Manual Here | ||||
WARNING: Read and understand the operator’s manual before operation. Be sure tractor/skid steer is properly counterbalanced.
Damage to equipment or personal injury could occur.
Damage to equipment or personal injury could occur.
