ATV Attachments FOD-16 Parts List

ATV Attachments FOD-16 Parts List

5 Ft. Single Gang Flip-Over Disc w/Clevis Hitch
Min. 18HP or 400cc Required

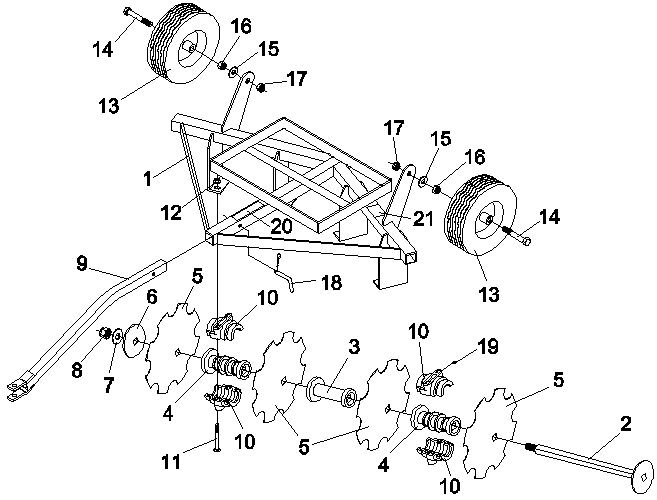

ATV Attachments FOD-16 Diagram

Ref. #

Part #

Description

# Req.

1

940421

Main Frame Weldment

1

2

940282

Disc Axle Weldment

2

3

940283

Disc Spool (Plain)

2

4

940284

Disc Spool (Ribbed)

4

5

940297

Disc Blade (Notched)

8

6

940318

Disc, Back-Up

2

7

2501001

Washer 1" Flat

2

8

2500045

Nut 1"- 8NC Hex Nylock

2

9

940430

Tongue Weldment

1

10

940293

Bearing Cap (Half)

8

11

2503268

Bolt 1/2" - 13NC x 5" Carriage Head Gr. 5

8

12

2500040

Nut 1/2" - 13NC Whiz Flange Hex

8

13

341935

Wheel Assembly 410/350 x 6

2

14

2503033

Bolt 3/4" - 10NC x 5" Hex Head Gr. 2

2

15

2501002

Washer 3/4" Flat

2

16

2500002

Nut 3/4" - 10NC Full Hex

2

17

2500075

Nut 3/4" - 10NC Hex Jam Nylock

2

18

341857

Shift Pin w/Hairclip Pin

1

19

2504208

Grease Zerk M6 x 1.0

8

20

101065

Safety Sign - No Riders

1

21

101195

Safety Sign - Warning (Sharp Blades)

1
