Euro/Global Integrated Frame Bale Spear GDBH-6000 Parts List

Euro/Global Integrated Frame Bale Spear GDBH-6000 Parts List

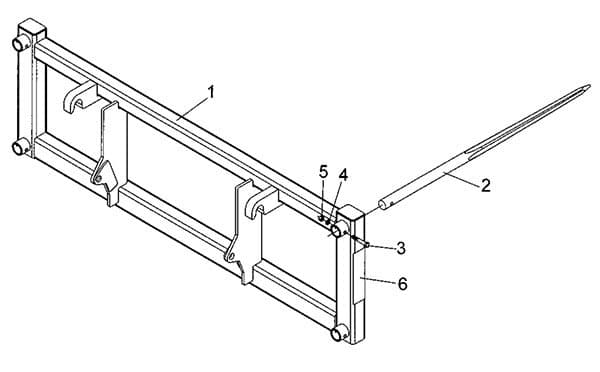

Euro/Global Integrated Frame Bale Spear GDBH-6000 Diagram

Ref. #

Part #

Description

# Req.

1

834156

Main Frame Weldment (GDBH-6000)

1

2

830928

Spear, Bolt-in

4

3

2503012

Bolt 1/2" - 13NC x 3" Hex Head Gr.2

4

4

2502002

Washer 1/2" Spring Lock

4

5

2500003

Nut 1/2" -13NC Full Hex

4

6

101277

Safety Sign - Warning (Read Manual)

1
