Rotating Bale Hand Hydraulic Connection Diagram and Parts List
Rotating Bale Hand Hydraulic Connection Parts List

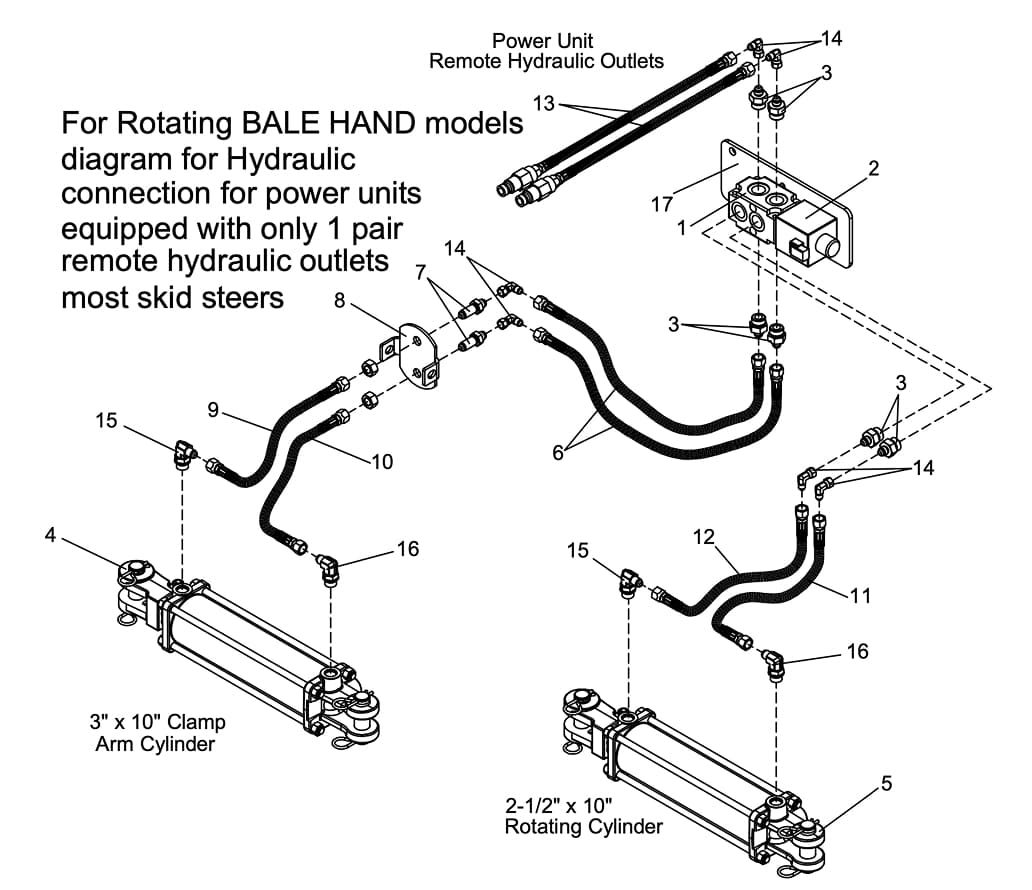

This is for Rotating Bale Hand Models for hydraulic connection for power units equipped with only 1 pair remote hydraulic outlets for most skid steers.
Rotating Bale Hand Hydraulic Connection Parts List
Ref #
Part #
Description
# Req'd
1
2505636
Valve Assembly (Includes Item #2)
1
2
2505637
Coil Only
1
3
2505697
Straight Connector - 9/16"-18 to 7/8"-14
6
4
2504259
Hydraulic Cylinder 3 x 10
1
5
2504265
Hydraulic Cylinder 2 1/2 x 10
1
6
2505803
Hydraulic Hose 1/4" x 31"
2
7
2505799
Bulkhead Union - 9/16"-18 to 9/16"-18
2
8
832378
Bulkhead Panel, Rotating Bale Hand
1
9
2505801
Hydraulic Hose 1/4" x 21"
1
10
2505802
Hydraulic Hose 1/4" x 25"
1
11
2505805
Hydraulic Hose 1/4" x 48"
1
12
2505804
Hydraulic Hose 1/4" x 42"
1
13
2505679
Hydraulic Hose 1/4" x 84"
1
14
2505682
90° Swivel Elbow 9/16"-18 to 9/16"-18
6
15
2505751
90° Swivel Elbow 9/16"-18 to 3/4"-16 w/ Orifice
2
16
2505681
90° Swivel Elbow 9/16"-18 to 3/4"-16
2
17
832963
Solenoid Bracket
1
n/s
2505544
Tie Wrap
10
