Split-Top Grapple Rake Diagram and Parts List

Split-Top Grapple Rake Diagram and Parts List

FLGR-262 / SSGR-262 / FLGR-262-G / FLGR-277 / SSGR-277 / FLGR-277-G

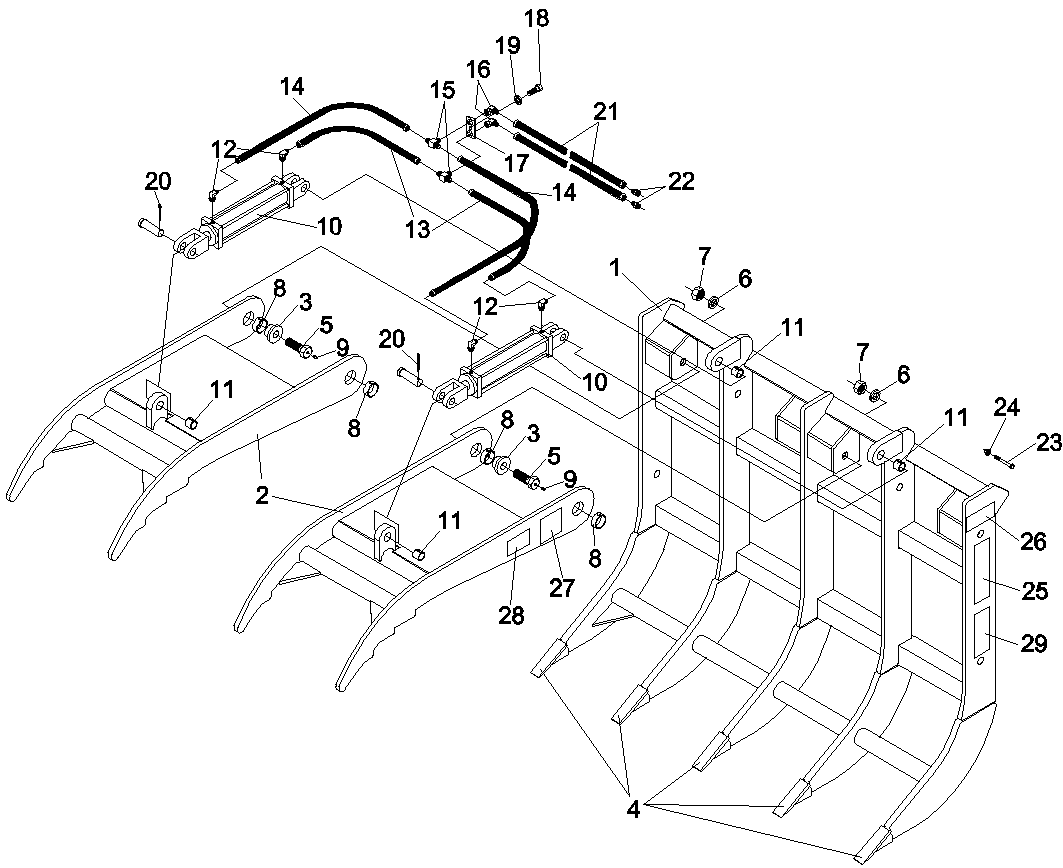

Split-Top Grapple Rake Diagram

Ref #

Part #

Description

# Req'd

1

811381

Main Frame Weldment (FLGR-262)

1

811401

Main Frame Weldment (FLGR-277)

1

811436

Main Frame Weldment (SSGR-262)

1

811441

Main Frame Weldment (SSGR-277)

1

811496

Main Frame Weldment (FLGR-262-G)

1

812081

Main Frame Weldment (FLGR-277-G

1

2

811390

Grapple Clamp Weldment

2

3

811125

Trunnion, Calmp Arm

4

4

811133

Point, Replaceable Grapple (Weld-On)

Var.

5

811389

Bolt 1" - 8NC x 3" Hex Head Gr. 5

4

6

2502009

Washer 1" Springlock

4

7

2500001

Nut 1" - 8NC Full Hex

4

8

2505036

Bushing 2.00 x 1.75 x .75 (Connex)

4

9

2504049

Zerk, Drive 5/16

4

10

2505690

Hydraulic Cylinder 2.00 x 10

2

11

2505035

Bushing 1.25 x 1 x 1 (Connex)

4

12

2505681

90º Adj. Elbow 9/16" JIC to 3/4" ORB

4

13

2505671

Hydraulic Hose 1/4" ID x 24" (262 Models)

2

2505672

Hydraulic Hose 1/4" ID x 30" (277 Models)

2

14

2505673

Hydraulic Hose 1/4" ID x 36" (262 Models)

2

2505674

Hydraulic Hose 1/4" ID x 42" (277 Models)

2

15

2505685

Tube Tee 9/16" Male

2

16

2505682

90º Swivel Elbow 9/16"

2

17

2504241

Plate, Tee Hold-Down

1

18

2503011

Bolt, Hex 3/8" - 16NC x 1.00 G2

1

19

2502008

Washer, 3/8" Springlock

1

20

2504121

Cotter Pin 3/16" x 1 1/2"

4

21

2505680

Hydraulic Hose 1/4" ID x 96" (SSGR Models)

2

22

2505684

Straight Connector 9/16" JIC to 3/4" ORB (SSGR Models)

2

23

2503209

Bolt, Hex 3/8" - 16NC x 3.00 G2 (Global Models)

3

24

2500081

Nut 3/8" - 16NC Whiz Flange Hex (Global Models)

3

25

101277

Safety Sign - Caution (Instructions)

1

26

101027

Safety Sign - Warning (Stand Clear)

2

27

101122

Safety Sign - Warning (Hi-Pressure)

2

28

101204

Safety Sign - Notice (Grapples)

2

29

101129

Safety Sign - Warning (Grapples)

1
