Landscape Rakes LRHD Series Parts List

Landscape Rakes LRHD Series Parts List

LRHD-6Ft., LRHD-7Ft., & LRHD-8Ft.

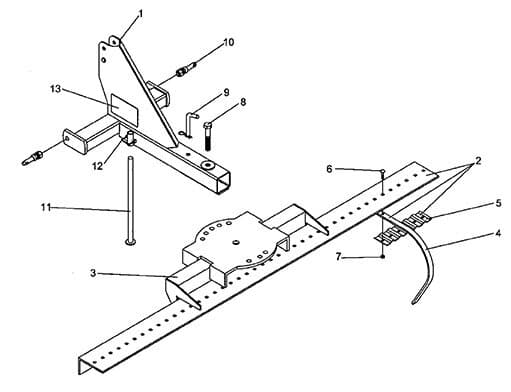

Landscape Rakes LRHD Series Diagram

Ref. #

Part #

Description

# Req.

1

343510

Mount, 3 Pt. Weldment<

1

2

343625

LRHD-6 Tinebar Assembly

1

343635

LRHD-7 Tinebar Assembly

1

343645

LRHD-8 Tinebar Assembly

1

3

343626

LRHD-6 Tinebar Weldment

1

343636

LRHD-7 Tinebar Weldment

1

343646

LRHD-8 Tinebar Weldment

1

4

341704

Rake Tooth

Var.

5

341705

Tooth Support

Var.

6

2503103

Bolt, Carriage 3/8" - 16NC x 1 1/2" Gr.2

Var.

7

2500081

Nut, Hex 3/8" - 16NC Whiz Flange

Var.

8

2503312

Bolt, Hex 1" - 8NC x 10" Gr. 8

1

9

350030

Adjustment Pin

1

10

590108

Draw Pin (AK-578)

2

11

343571

Stand Tube Weldment

1

12

590194

Lock Pin 5/16" (AK-2907)

1

13

101148

Safety Sign - Caution (Safe Operating)

1
