Hydraulic Post Drivers QuickChange System
Hydraulic Post Drivers QuickChange System

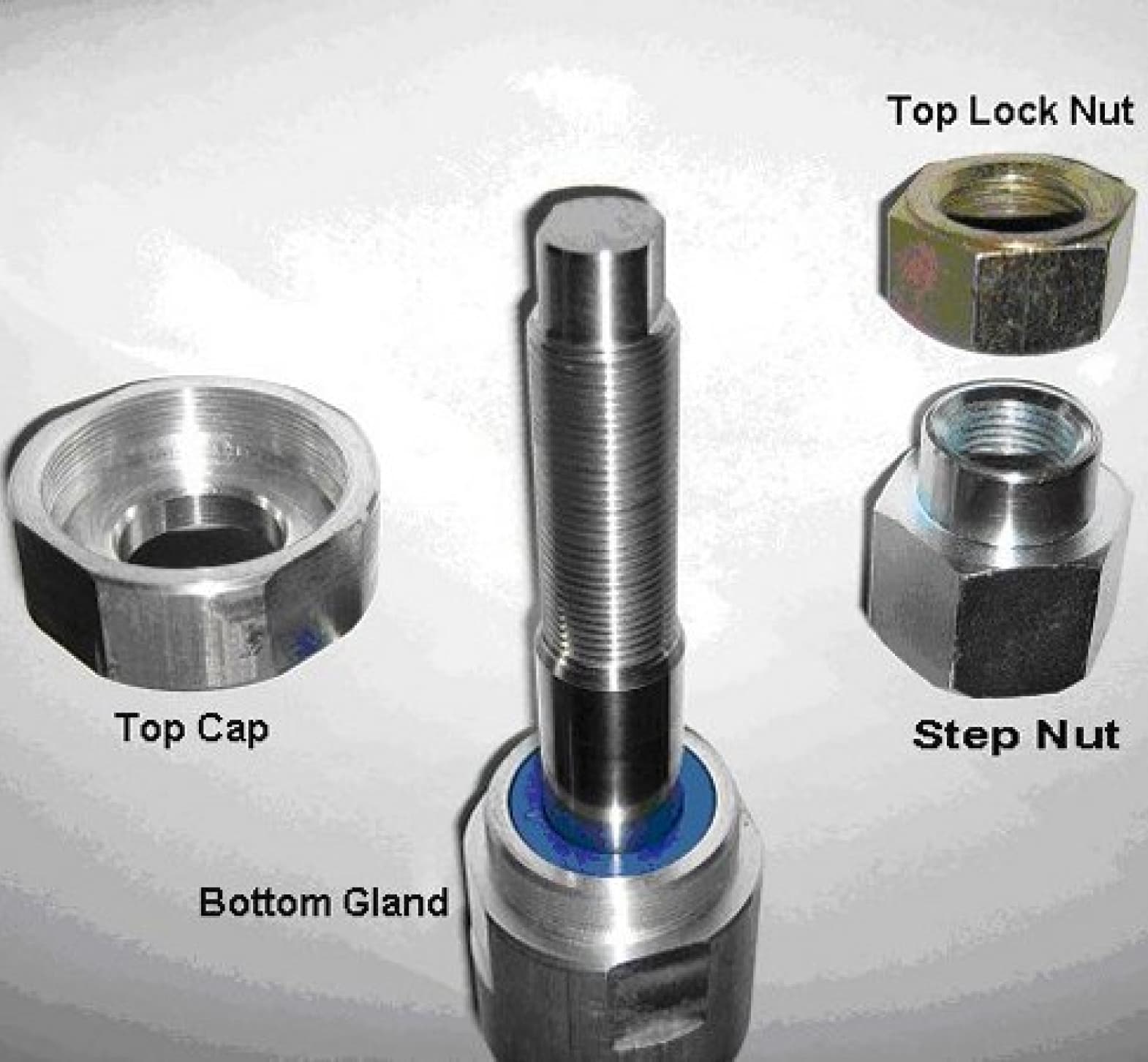

Worksaver is introducing the QuickChange system featuring a new End Cap (Splitcap) for our HPD-series of Post Drivers. This new SplitCap will allow the end user to easily replace the rod seal in the field. The QuickChange system also involves a change to the cylinder rod and attaching hardware. The serial number break and parts information is listed below.
HPD-16 Effective with S/N 4077
Description
Item #
Cylinder Rod (now 1-inch dia.)
815166
End Cap w/Rod Seal
815170
Shoulder Nut
815205
New Top Nut
2500017
HPD-20 Effective with S/N 4531
Description
Item #
Cylinder Rod
815204
End Cap w/Rod Seal
815170
Shoulder Nut
815205
New Top Nut
2500017
HPD-24 Effective with S/N 1284
Description
Item #
Cylinder Rod
815204
End Cap w/Rod Seal
815170
Shoulder Nut
815205
New Top Nut
2500017
WARNING: Read and understand the operator’s manual before operation. Be sure tractor/skid steer is properly counterbalanced. Damage to equipment or personal injury could occur.
NOTICE: Worksaver Inc. has a corporate policy of continuous product improvement and development: Therefore, specifications are subject to change without any advance notice. Worksaver Inc. is not responsible for differences between specifications or illustrations contained in this site and the actual equipment.
