Snow Pushers

Snow Pushers for Front Loaders and Skid Steers

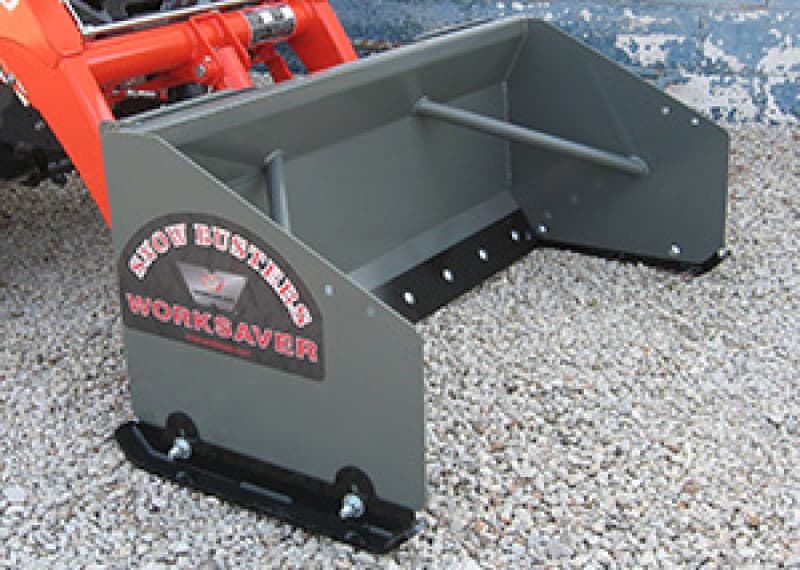

20-series-snow-pusher20-Series Snow Pusher

20-Series Features

  • Models designed for Sub-Compact tractors up to 32 HP.
  • Adjustable skid shoes of AR-400 material.
  • End plates with gentle slope design.
  • Models are available to fit “Universal” skid steer attaching system and John Deere hook & pin quick attach.
  • Optional Pull-Back kit available for all models.
  • Available in widths of 4' or 5' with either a ultra rubber edge or alloy steel cutting edge.
  • CNC formed 11-gauge moldboard with formed 10-gauge back brace for strength and durability.
  • Literature

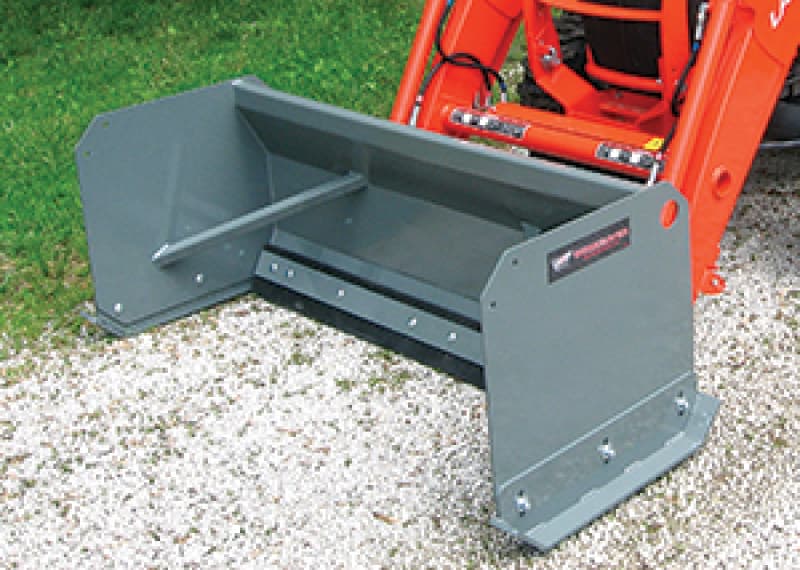

24-series-snow-pusher 24-Series Snow Pusher

24-Series Features

  • Engineered to fit compact tractors equipped with a front loader.
  • Replaceable 1” x 6” reversible ultra rubber cutting edge is standard on “R” models.
  • Replaceable 3/8” x 6” reversible steel cutting edge is standard on “M” models.
  • Models to fit loaders with “Universal” skid steer attaching system.
  • Models to fit John Deere 200/300/400 series loaders with hook & pin quick attach system.
  • All models feature adjustable & reversible skid shoes of high abrasive resistance steel.
  • Optional Pull-Back kit available for all models features 1' x 6" ultra rubber cutting edge.
  • Literature

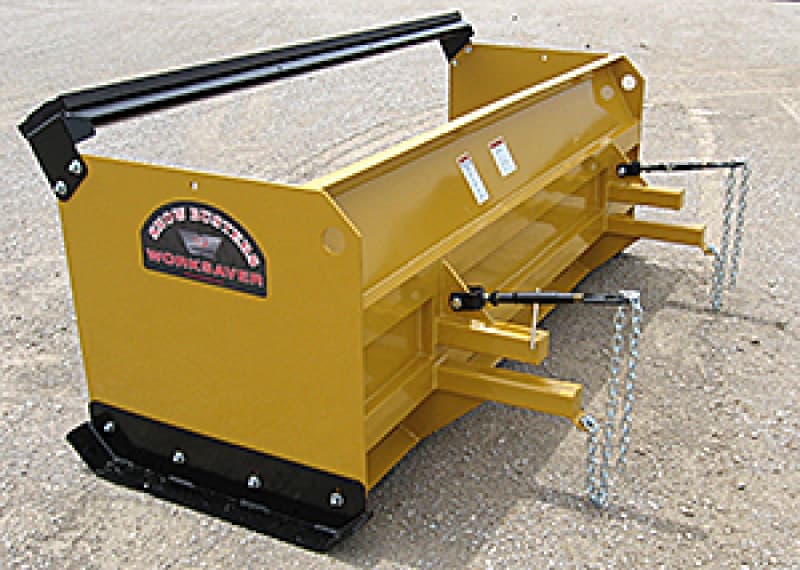

36-series-snow-pusher36-Series Snow Pusher

36-Series Features

  • Models designed for skid steers and tractors equipped with a loader, job matched for maximum performance.
  • Adjustable & reversible 1.5” x 8” ultra rubber cutting edge.
  • CNC formed 7-gauge moldboard, 5/16” end plates with 4-inch wide reversible skid shoes of abrasive resistant steel.
  • Models for "universal" skid steer, John Deere 400/500 and Euro/Global quick attach.
  • Optional Pull-Back kit available for all models features 1' x 6" ultra rubber cutting edge.
  • Blank back models allow optional interfacing quick attach brackets to be welded on.
  • Clamp-on models are engineered to quickly connect to a wide choice of loader buckets.
  • Literature

watch video button



20-Series Snow Pusher with optional metal pull-back kit20-Series Snow Pusher w/Opt. Metal Pull-Back Kit
36 series pull back36-Series Snow Pusher w/Opt. Pull-Back Kit
36 series clamp-on bucket mountClamp-on Bucket Mount 36-Series Snow Pusher w/Opt. Pull-Back Kit
Optional Poly Skid Shoes for 20- & 24-Series Snow PushersOptional Poly Skid Shoes for 20- & 24-Series Snow Pushers

20-Series Snow Pusher Specifications
For Sub-Compact Tractors up to 32 HP, Max.
“Universal” Skid Steer Attach
  SPS-2048R SPS-2048M SPS-2060R SPS-2060M
Overall Width (in/cm) 52 / 132 52 / 132 64 / 163 64 / 163
Overall Height (in/cm) 21.5 / 55 21.5 / 55 21.5 / 55 21.5 / 55
Overall Depth (in/cm) 21 / 53 21 / 53 21 / 53 21 / 53
Moldboard Thickness 11-gauge 11-gauge 11-gauge 11-gauge
End Plate Thickness 7-gauge 7-gauge 7-gauge 7-gauge
Inside Angle Bracing Yes Yes Yes Yes
Rubber Cutting Edge Yes (1" x 4") No Yes (1" x 4") No
Alloy Steel Cutting Edge No Yes (3/8" x 4") No Yes (3/8" x 4")
Skid Shoes of AR-400 Yes Yes Yes Yes
Horsepower Rating Up to 32 HP Up to 32 HP Up to 32 HP Up to 32 HP
Operating Weight of Power Unit 1,800 lbs. Max. 1,800 lbs. Max. 1,800 lbs. Max. 1,800 lbs. Max.
Weight (lbs/kg) 146 / 66 163 / 74 159 / 72 180 / 82
Product No. 358160 358165 358170 358175
Optional Rubber Edged Pull-Back Kit 358200 358200 358205 358205
Optional Metal Edged Pull-Back Kit 358230 358230 358235 358235
Optional Poly Skid Shoes 358240 358240 358240 358240
 Snow Pushers Manual

20-Series Snow Pusher Specifications
For John Deere Sub-Compact Tractors up to 32 HP, Max.
John Deere Hook & Pin Quick Attach for 200/300, D120, H120, H130
  SPJD-2048R SPJD-2048M SPJD-2060R SPJD-2060M
Overall Width (in/cm) 52 / 132 52 / 132 64 / 163 64 / 163
Overall Height (in/cm) 21.5 / 55 21.5 / 55 21.5 / 55 21.5 / 55
Overall Depth (in/cm) 21 / 53 21 / 53 21 / 53 21 / 53
Moldboard Thickness 11-gauge 11-gauge 11-gauge 11-gauge
End Plate Thickness 7-gauge 7-gauge 7-gauge 7-gauge
Inside Angle Bracing Yes Yes Yes Yes
Rubber Cutting Edge Yes (1" x 4") No Yes (1" x 4") No
Alloy Steel Cutting Edge No Yes (3/8" x 4") No Yes (3/8" x 4")
Skid Shoes of AR-400 Yes Yes Yes Yes
Horsepower Rating Up to 32 HP Up to 32 HP Up to 32 HP Up to 32 HP
Operating Weight of Power Unit 1,800 lbs. Max. 1,800 lbs. Max. 1,800 lbs. Max. 1,800 lbs. Max.
Weight (lbs/kg) 131 / 59 148 / 67 145 / 66 166 / 75
Product No. 358180 358185 358190 358195
Optional Rubber Edged Pull-Back Kit 358200 358200 358205 358205
Optional Metal Edged Pull-Back Kit 358230 358230 358235 358235
Optional Poly Skid Shoes 358240 358240 358240 358240
 Snow Pushers Manual
24-Series Snow Pusher Specifications
For Tractors up to 50 HP, Max.
“Universal” Skid Steer Attach
  SPS-2460R SPS-2460M SPS-2472R SPS-2472M SPS-2484R SPS-2484M
Overall Width (in/cm) 66.5 / 169 66.5 / 169 78.5 / 199.4 78.5 / 199.4 90.5 / 230 90.5 / 230
Overall Height (in/cm) 25.6 / 65 25.6 / 65 25.6 / 65 25.6 / 65 25.6 / 65 25.6 / 65
Overall Depth (in/cm) 26 / 66 26 / 66 26 / 66 26 / 66 26 / 66 26 / 66
Moldboard Thickness 10-gauge 10-gauge 10-gauge 10-gauge 10-gauge 10-gauge
End Plate Thickness (in/cm) ¼ / 0.635 ¼ / 0.635 ¼ / 0.635 ¼ / 0.635 ¼ / 0.635 ¼ / 0.635
Reinforced Endplates Yes Yes Yes Yes Yes Yes
Rubber Cutting Edge Yes No Yes No Yes No
Steel Cutting Edge No Yes No Yes No Yes
Adjustable/Reversible Skid Shoes Standard Standard Standard Standard Standard Standard
Horsepower Rating  20-30 HP  20-30 HP  25-40 HP  25-40 HP  30-50 HP  30-50 HP
Operating Weight of Power Unit 3,500 lbs. Max. 3,500 lbs. Max. 3,500 lbs. Max. 3,500 lbs. Max. 3,500 lbs. Max. 3,500 lbs. Max.
Weight (lbs/kg) 390 / 177 410 / 186 430 / 195 450 / 204 465 / 211 485 / 220
Product No. 358000 358005 358010 358015 358020 358025
Optional Pull-Back Kit 358095 358095 358105 358105 358115 358115
Optional Poly Skid Shoes  358245  358245 358245  358245  358245  358245
 Snow Pushers Manual

24-Series Snow Pusher Specifications
For John Deere Tractors up to 50 HP, Max.
John Deere Hook & Pin Quick Attach for 200/300/400, D120, D160, D170, H120, H130, H160, H165, H180
  SPJD-2460R SPJD-2460M SPJD-2472R SPJD-2472M SPJD-2484R SPJD-2484M
Overall Width (in/cm) 66.5 / 169 66.5 / 169 78.5 / 199.4 78.5 / 199.4 90.5 / 230 90.5 / 230
Overall Height (in/cm) 25.6 / 65 25.6 / 65 25.6 / 65 25.6 / 65 25.6 / 65 25.6 / 65
Overall Depth (in/cm) 26 / 66 26 / 66 26 / 66 26 / 66 26 / 66 26 / 66
Moldboard Thickness 10-gauge 10-gauge 10-gauge 10-gauge 10-gauge 10-gauge
End Plate Thickness (in/cm) ¼ / 0.635 ¼ / 0.635 ¼ / 0.635 ¼ / 0.635 ¼ / 0.635 ¼ / 0.635
Reinforced Endplates Yes Yes Yes Yes Yes Yes
Rubber Cutting Edge Yes No Yes No Yes No
Steel Cutting Edge No Yes No Yes No Yes
Adjustable/Reversible Skid Shoes Standard Standard Standard Standard Standard Standard
Horsepower Rating  20-30 HP  20-30 HP  25-40 HP  25-40 HP  30-50 HP  30-50 HP
Operating Weight of Power Unit 3,500 lbs. Max. 3,500 lbs. Max. 3,500 lbs. Max. 3,500 lbs. Max. 3,500 lbs. Max. 3,500 lbs. Max.
Weight (lbs/kg) 379 / 172 399 / 181 415 / 188 435 / 197 450 / 204 470 / 213
Product No. 358030 358035 358040 358045 358050 358055
Optional Pull-Back Kit 358095 358095 358105 358105 358115 358115
Optional Poly Skid Shoes 358245 358245 358245 358245 358245 358245
Snow Pushers Manual
36-Series Snow Pusher Specifications for Skid Steer and Tractor Loaders
  SPS-3696R SPJD-3696R SPG-3696R SPS-36120R SPJD-36120R SPG-36120R SPC-3696R SPC-36120R SPB-3696R SPB-36120R
Overall Width
(in/cm)		 104.5 / 265 104.5 / 265 104.5 / 265 128.5 / 326 128.5 / 326 128.5 / 326 104.5 / 265 128.5 / 326 104.5 / 265 128.5 / 326
Overall Height (in/cm) 37.37 / 95 37.37 / 95 37.37 / 95 37.37 / 95 37.37 / 95 37.37 / 95 37.37 / 95 37.37 / 95 37.37 / 95 37.37 / 95
Overall Depth
(in/cm)		 37.75 / 96 37.75 / 96 37.75 / 96 37.75 / 96 37.75 / 96 37.75 / 96 37.75 / 96 37.75 / 96 37.75 / 96  37.75 / 96
Moldboard
Thickness		 7-gauge 7-gauge 7-gauge 7-gauge 7-gauge 7-gauge 7-gauge 7-gauge 7-gauge  7-gauge
End Plate
Thickness
(in/cm)		 5/16/0.795 5/16/0.795 5/16/0.795 5/16/0.795 5/16/0.795 5/16/0.795 5/16/0.795 5/16/0.795 5/16/0.795  5/16/0.795
Reinforced
Endplates		 Yes Yes Yes Yes Yes Yes  Yes Yes Yes  Yes
Rubber
Cutting Edge		 Yes Yes Yes Yes Yes Yes  Yes Yes Yes  Yes
Adjustable/
Reversible Skid Shoes		 Standard Standard Standard Standard Standard Standard Standard Standard Standard  Standard
Horsepower Rating 50-90 HP 50-90 HP 50-90 HP 50-125 HP 50-125 HP 50-125 HP 50-90 HP 50-125 HP 50-90 HP 50-125 HP
Weight (lbs/kg) 815 / 370 780 / 354 810 / 367 905 / 410 870 / 395 900 / 408 845 / 383 935 / 424 775 / 351 865 / 392
Mounting Skid Steer JD 400/500 Euro/Global Skid Steer JD 400/500 Euro/Global Bucket/
Chain-on		 Bucket/
Chain-on		 Mgt. Brt. Available*  Mgt. Brt. Available*
Product No. 358060 358070 358080 358090 358100 358110 358140 358150  358130  358135
Optional
Pull-Back Kit		 358120 358120 358120 358125 358125 358125 358120 358125 358120  358125
 Snow Pushers Manual

*Optional weld-on Quick Attach brackets available for most popular loaders.
