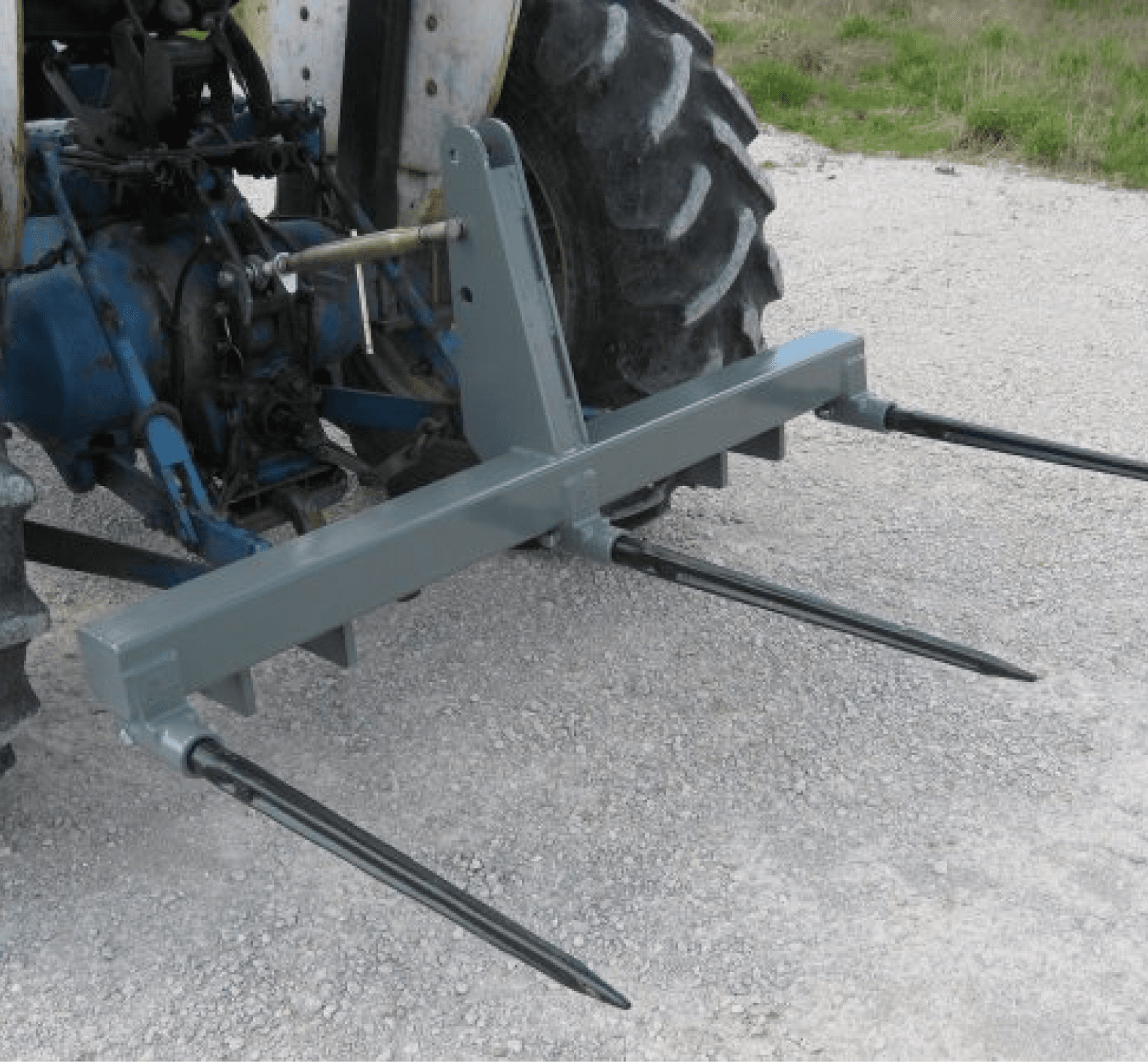

3000lb. Triple Bolt-in 3-pt. Bale Spear
| HS-330 Part List | ||||
 |
||||
| Ref. | Part No. | Description | Req'd. | |
| 1 | 832581 | Main Frame Weldment HS-330 | 1 | |
| 2 | 830928 | Spear, Forged (Bolt-in) | 3 | |
| 3 | 2503112 | Bolt, 1/2" -13NC x 5.00" Hex Head Gr.2 | 3 | |
| 4 | 2502002 | Washer 1/2" Springlock | 3 | |
| 5 | 2500003 | Nut, 1/2"-13NC Full Hex | 3 | |
| 6 | 830290 | Pin, Hitch | 2 | |
| 7 | 590126 | Lift Arm Bushing | 2 | |
| 8 | 590006 | Linch Pin 7/16" | 1 | |
| N/S | 101277 | Safety Sign - Warning | 1 | |
| N/S | 590066 | Optional Toplink Bushing (Cat. ll/lll) | 1 | |
