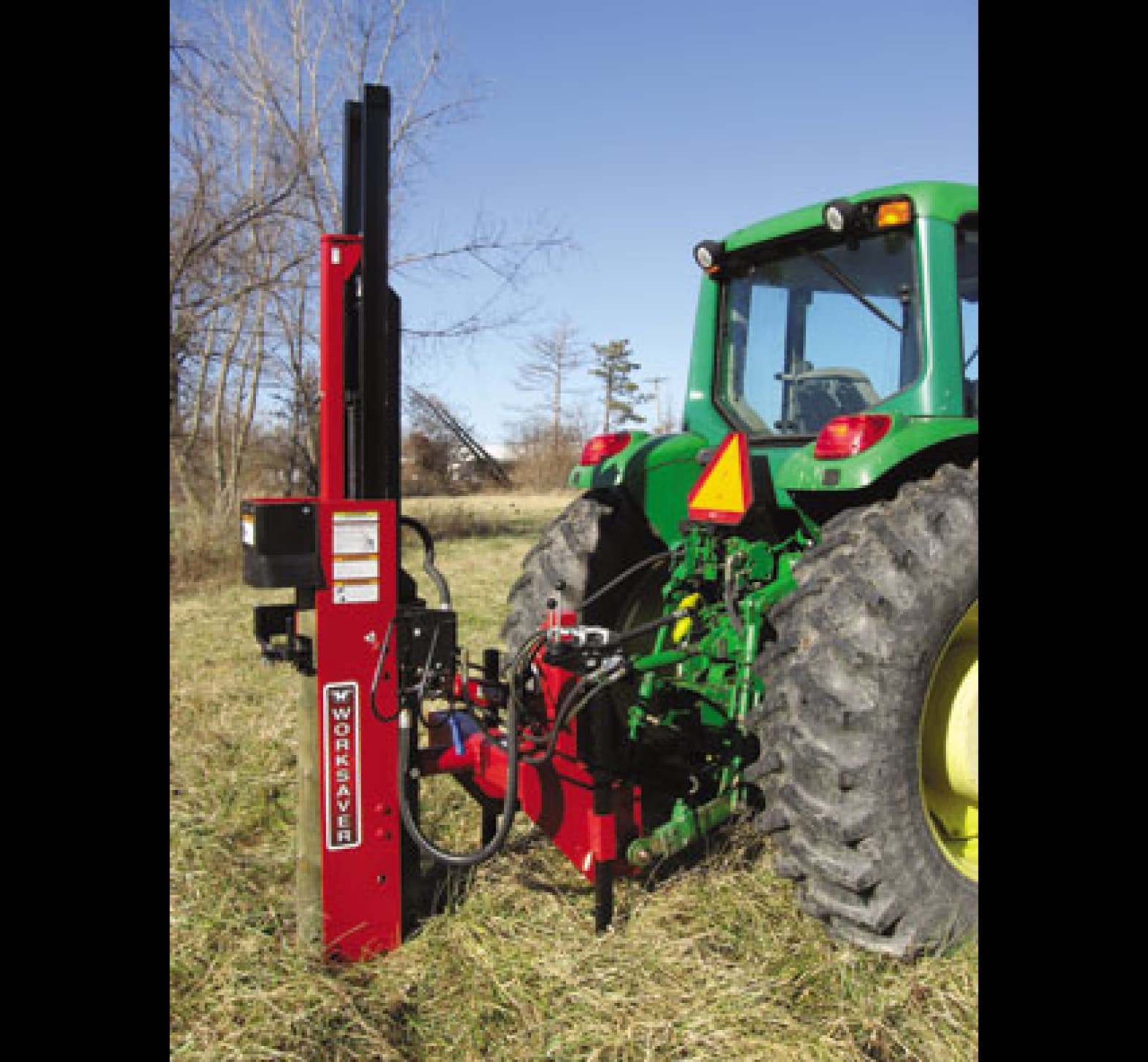

Designed and engineered for those who have serious fencing to do. These center mounted units offer all the quality features of the basic HPD-16 & HPD-22Q plus effortless hydraulic driver alignment controlled by two 3” x 6” hydraulic cylinders. For increased driving force, the heavyduty HPD-26Q SHC delivers 110,000 lbs. of high-impact force for driving large posts in tough soil conditions. Big-foot stabilizer helps control tractor bounce on these larger units.
Maximum Post Sizes:
HPD-16SHC - 5” dia., 9’ length
HPD-22Q SHC - 8-3/4” dia., 10’ length
HPD-26Q SHC - 11” dia., 10’ length
Download the literature
Maximum Post Sizes:
HPD-16SHC - 5” dia., 9’ length
HPD-22Q SHC - 8-3/4” dia., 10’ length
HPD-26Q SHC - 11” dia., 10’ length
Download the literature
| Specifications | |||
| Model | HPD-16 SHC | HPD-22Q SHC | HPD-26Q SHC |
| Max. Post Size | 5” x 9’ | 8-3/4” x 10’ | 11” x 10’ |
| Impact at Full Stroke | 32,000 lbs. | 80,000 lbs. | 110,000 lbs. |
| Impact at Half Stroke | 16,000 lbs. | 40,000 lbs. | 55,000 lbs. |
| Mount Type | 3-pt. Cat I/II | 3-pt. Cat I/II | 3-pt Cat II |
| Tilt Adj. Front/Back | 17° each way | 17° each way | 17° each way |
| Tilt Adj. Side/Side | 20° each way | 20° each way | 20° each way |
| Manual Adjust | No | No | No |
| Hydraulic Adjust | Yes | Yes | Yes |
| Adj. Cylinders/Size | (2) 3” x 6” | (2) 3” x 6” | (2) 3” x 6” |
| Stabilizer Legs | Standard | Standard | Standard |
| Big Foot | Yes | Yes | Yes |
| Slide Blocks Material | Nyrim | UHMW* | UHMW* |
| Spring Post Holder | Standard | Standard | Standard |
| Min. Tractor Size | 20-22 hp | 30-35 hp | 50-55 hp |
| Rear Hitch Category | Cat. I or II | Cat. Ior II | Cat. II |
| Min. Hydraulic Req. | 3-4 GPM | 6-8 GPM | 12 GPM |
| QuickChange Rod Seal | Yes | Yes | Yes |
| Q-springs | N/A | Yes | Yes |
| Valve(s) | Sgl./Dbl. Spool | Sgl./Dbl. Spool | Sgl./Dbl. Spool |
| Hoses less couplers | Standard | Standard | Standard |
| Weight (lbs.) | 875 | 1035 | 1215 |
| Product Number | 814825 | 815330 | 815345 |
| Parts Lists | HPD-16 Parts List Click Here | HPD-22Q Parts List Click Here | HPD-26Q Parts List Click Here |
| Drivers Q Series Manual | Hydraulic Control Valve & Mounting Bracket For HPD-16, HPD-22Q and HPD-26Q SCH Models | SHC Hydraulic Center Mount | |
WARNING: Read and understand the operator’s manual before operation. Be sure tractor/skid steer is properly counterbalanced. Damage to equipment or personal injury could occur.
